Complete genome sequence of Jiangella gansuensis strain YIM 002T (DSM 44835T), the type species of the genus Jiangella and source of new antibiotic compounds
Standards in Genomic Sciences volume 12, Article number: 21 (2017)
Jiangella gansuensis strain YIM 002T is the type strain of the type species of the genus Jiangella, which is at the present time composed of five species, and was isolated from desert soil sample in Gansu Province (China). The five strains of this genus are clustered in a monophyletic group when closer actinobacterial genera are used to infer a 16S rRNA gene sequence phylogeny. The study of this genome is part of the G enomic E ncyclopedia of B acteria and A rchaea project, and here we describe the complete genome sequence and annotation of this taxon. The genome of J. gansuensis strain YIM 002T contains a single scaffold of size 5,585,780 bp, which involves 149 pseudogenes, 4905 protein-coding genes and 50 RNA genes, including 2520 hypothetical proteins and 4 rRNA genes. From the investigation of genome sizes of Jiangella species, J. gansuensis shows a smaller size, which indicates this strain might have discarded too much genetic information to adapt to desert environment. Seven new compounds from this bacterium have recently been described; however, its potential should be higher, as secondary metabolite gene cluster analysis predicted 60 gene clusters, including the potential to produce the pristinamycin.
Jiangella gansuensis strain YIM 002 T (=DSM 44835 T =CCTCC AA 204001 T =KCTC 19044 T) is the type strain of J. gansuensis . This organism is an aerobic, Gram-positive, haloduric filamentous actinomycete, placed within the genus Jiangella .
The genus Jiangella was first identified by Song et al. in 2005, including five halotolerant species listed at present by LPSN . Members of this taxon isolated from different habitats, respectively, are rarely described except for their polyphasic approach based on combination of phenotypic and genotypic characteristics [1, 3–6]. The Jiangella was originally identified as a new genus of the family Nocardioidaceae within the suborder Propionibacterineae  based on phenotypic and genotypic criteria. However, the reconstruction of the phylogenetic relationships of Actinobacteria at higher taxa was done later based on using the 16S rRNA genes and other related evidences, such as taxon-specific 16S rRNA gene signature nucleotides [7, 8]. After the genus Haloactinopolyspora was described by Tang et al., the genus Jiangella together with the genus Haloactinopolyspora were placed in a novel family Jiangellaceae belong to Jiangellineae subord. nov., mainly because of theirs signature nucleotide patterns, 16S rRNA gene similarity and phylogenetic criteria . Presently, the J. gansuensis is placed in the family Jiangellaceae of the order Jiangellales within the class Actinobacteria .
The capacity of J. gansuensis YIM 002 T to produce seven new compounds (five pyrrol-2-aldehyde compounds, jiangrines A-E; one indolizine derivative, jiangrine F; one glycolipid, jiangolide) has previously been shown , highlighting the importance of this bacterium and its analysis as a novel source of secondary metabolites. As part of the GEBA project and considering its phylogenetic position and biological significance, we finally decided to sequence the genome of the type strain of J. gansuensis . Here we present a summary classification and a set of features for J. gansuensis YIM 002 T, together with the description of genomic sequencing and annotation. At the same time, we will provide a brief introduction of its genome in this article.
Classification and features
Strain YIM 002 T is a free-living isolate collected from a desert soil sample of Gansu Province during an investigation into microbial diversity of extreme environments. This actinobacterium forms well-differentiated non-sporulating aerial and substrate mycelia. Its aerial hypha was observed to have yellow-white color at the earliest and finally turns to orange-yellow after few days on NA medium, and its substrate mycelia fragmented into short or elongated rods in the early phase of the growth (Fig. 1). Growth was observed on ISP 2, ISP 3, ISP 4, ISP 5, nutrient agar and Czapek’s agar [1, 12]. The type strain of this taxon is able to tolerate a pH range between 5.0 and 10.0, and able to growth at the salinity between 0 and 10% (w/v NaCl), with no growth observed at 12.5%. Optimal growth of strain YIM 002 T occurs at pH 7.0–8.0, 1–5% (w/v) NaCl and 28 °C. The diamino acid in the peptidoglycan is LL-2,6-diaminopimelate. MK-9(H4) is the predominant menaquinone. The primary phospholipids profile of strain DSM 44835 T was found to consist of phosphatidylinositol mannosides, phosphatidylinositol and diphosphatidylglycerol. Its major cellular fatty acids (>10%) are anteiso-C15:0, anteiso-C17:0 and iso-C15:0. Whole cell sugar composition includes glucose and ribose, whereas the amino acids in the peptidoglycan layer were LL-A2pm, alanine, glycine and glutamic acid . The DNA G + C content of the type strain was previously determined as 70% while genome analysis showed a higher value of 70.91%.
The draft genome of J. gansuensis YIM 002 T has one almost full-length 16S rRNA gene sequence, which correspond perfectly with the original sequence from the species description (AY631071). The comparison of this 16S rRNA sequence of YIM 002 T using the EzTaxon-e server , showed highest similarity to Jiangella alba YIM 61503 T (98.93%), with close relationships to other species within the genus, Jiangella muralis 15-Je-017T (98.88%), Jiangella mangrovi 3SM4-07T (98.49%) and Jiangella alkaliphila D8-87T (98.10%). Closest other genera are Haloactinopolyspora  and Phytoactinopolyspora . The strains of the genus Jiangella have many 16S rRNA gene signature nucleotides compared with most of other described actinomycetes. This allows for distinguished them easily from other actinobacteria, especially in 11 unique positions, including 127:234 (G-C), 598:640 (C-G), 672:734 (G–C), 831:855 (U–A), 833:853 (G–C), 840:846 (A–U), 950:1231 (G–C), 952:1229 (G–C), 955:1225 (G–U), 986:1219 (U–G) and 987:1218 (C–G) .
Phylogenetic analyses were performed using both neighbor-joining (NJ) and maximum-likehood (ML) algorithms. The NJ phylogenetic tree of the genus Jiangella based on 16S rRNA genes provide an evidence of its independent taxon (Figs. 2 and Additional file 1: Figure S1), together with the genera Haloactinopolyspora and Phytoactinopolyspora , which arouse ours reflection on the relationship of three families among Jiangellaceae , Nocardioidaceae and Pseudonocardiaceae . The ML tree (Additional file 1: Figure S1) demonstrates the same positions in Jiangellaceae compared with the NJ tree. Minimum Information about the Genome Sequence is provided in Table 1.
Genome sequencing information
Genome project history
This organism was selected for sequencing on the basis of its important phylogenetic position and biological significance [15, 16], and for a better understanding of the school of ‘evolutionary taxonomy’ . Sequencing of J. gansuensis YIM 002 T is part of Genomic Encyclopedia of Bacteria and Archaea pilot project , which aims for generating high quality draft genomes for bacterial and archaeal strains. The genome project is deposited in the Genomes OnLine Database (GOLD) , and the finished genome sequence was deposited in GenBank. Genome sequencing, finishing and annotation were performed by the Department of Energy, Joint Genome Institute (JGI) using state of the art genome sequencing technology . A summary of project information is shown in Table 2, compliance with MIGS version 2.0 .
Growth conditions and genomic DNA preparation
J. gansuensis strain YIM 002 T (=DSM 44835 T) was grown in DSMZ medium 65 (GYM Streptomyces medium) at 28 °C. Genomic DNA was isolated using Qiagen Genomic 500 DNA Kit (Qiagen, Hilden, Germany) following the standard protocol provided by the manufacturer. Some modifications were included for cell lysis, first freezing for 20 min (−70 °C), then heating 5 min (98 °C), and cooling 15 min to 37 °C; adding 1.5 ml lysozyme (standard: 0.3 ml, only), 1.0 ml achromopeptidase, 0.12 ml lysostaphine, 0.12 ml mutanolysine, 1.5 ml proteinase K (standard: 0.5 ml, only), followed by overnight incubation at 35 °C.
Genome sequencing and assembly
All general aspect of library construction and sequencing performed can be found at the JGI website. The complete sequence in one scaffold was obtained from 9 contigs with the assembly method ALLPATHS v. R37654, obtaining a total size of 5.5 Mbp from a total volume data of 4 Gbases (Fig. 3).
Prodigal  was used to identify genes as part of the JGI genome annotation pipeline [23, 24] followed by a round of manual curation using the JGI GenePRIMP pipeline . The National Center for Biotechnology Information non-redundant database, UniProt, TIGR/Fam, Pfam, PRIAM, KEGG, COG, and InterPro databases were used to analyse the predicted CDSs after translation. RNA genes identification was done using HMMER 3.0  (rRNAs) and tRNAscan-SE 21.23  (tRNAs). INFERNAL 1.0.2  was used for prediction of other non-coding genes. Integrated Microbial Genomes Expert Review platform  permitted the additional gene prediction analysis and functional annotation. CRISPR elements were detected with CRT  and PILER-CR . General statistics are shown in Table 3.
The assembly of the draft genome sequence consists of one scaffold for the strain YIM 002 T (Fig. 1), with 70.9% GC content (Table 3) in 5,585,780 nucleotides. From a total of 5104 genes, there were 4905 protein-coding genes, 149 pseudogens and 50 RNA genes. Numbers of the genes were assigned a putative function (48.86%), while the remaining protein-coding genes were annotated as hypothetical proteins. COGs categories distributions for the genes are presented in Table 4.
Insights from the genome sequence
The genome of YIM 002 T with a high G + C content and the smallest size within the Jiangella genomes (Table 3) may be the result of selection and mutation , which could involve several factors, such as environment, aerobiosis and others . Generally speaking, a larger genome size may correlate with more complex habitat, suggesting that the genome encodes a large metabolic and stress-tolerance potential . However, after we investigated the genome size of other type strains of Jiangella species, we found the size of the other three strains sequenced of this genus, J. alkaliphila , J. alba and J. muralis greater than 7 Mbp based on the genome data from NCBI. This result could implicate that the tight packing and small size of J. gansuensis is likely an adaptation for reproductive efficiency or competitiveness . As a halotolerant actinobacterium, solute and ion transporter were predicted in its genome. At the same time, the genome shows properties related to solution of nitrate and sulfonate transport systems. Moreover, nitrite reductase and nitrogen fixation protein NifU were also detected.
The capacity of this microorganism to produce antibiotics has been recently proved with the description of seven new compounds (five pyrrol-2-aldehyde compounds, jiangrines A-E; one indolizine derivative, jiangrine F; one glycolipid, jiangolide) . However, its potential should be higher, taken account the 45 biosynthetic clusters found within the JGI tool  and the 497 genes implicated in these clusters. As most of the clusters appear to be putative genes in this analysis, a second approach was carried out to detect the variety of biosynthetic types and enhance manual genome annotations of secondary metabolite biosynthesis. The software pipeline antiSMASH for secondary metabolite gene cluster identification, annotation and analysis was used [37, 38]. From this analysis, 60 gene clusters were identified, including 20 gene clusters in which the most similar clusters were still unknown (Additional file 2: Table S1). The result of the analysis shown the potential of J. gansuensis to produce pristinamycin, an antibiotic derived from Streptomyces pristinaespiralis effective against staphylococcal infections, and other antibiotics.
The genome sequence and annotation of J. gansuensis YIM 002 T were presented. This draft genome possess a smaller size (5.59 Mb) compared with other Jiangella species, and contents 2504 function predicted proteins, indicating that J. gansuensis possibly discarded many genes to adapt to the extreme desert conditions during its evolution. Although the processes of nitrous metabolism and secondary metabolism need further investigation to fully understand the related pathways, we believe that J. gansuensis participates in nitrogen cycling and has an important ability to produce secondary metabolites. This genome will contribute to further studies on phylogenetics and the mechanisms of environmental adaptation. A combined study together with genomes of other members in the family Jiangellaceae will help us to better understand the ecological role of this taxon and its relationships to other actinobacteria.
Clustered regularly interspaced short palindromic repeats
Genomic encyclopedia of bacteria and archaea
Integrated microbial genomes – expert review
Joint Genome Institute
List of prokaryotic names with standing in nomenclature
Song L, Li WJ, Wang QL, Chen GZ, Zhang YS, Xu LH. Jiangella gansuensis gen. nov., sp. nov., a novel actinomycete from a desert soil in north-west China. Int J Syst Evol Microbiol. 2005;55:881–4.
Parte AC. LPSN--list of prokaryotic names with standing in nomenclature. Nucleic Acids Res. 2014;42:D613–6.
Qin S, Zhao GZ, Li J, Zhu WY, Xu LH, Li WJ. Jiangella alba sp. nov., an endophytic actinomycete isolated from the stem of Maytenus austroyunnanensis. Int J Syst Evol Microbiol. 2009;59:2162–5.
Lee SD. Jiangella alkaliphila sp. nov., an actinobacterium isolated from a cave. Int J Syst Evol Microbiol. 2008;58:1176–9.
Kämpfer P, Schafer J, Lodders N, Martin K. Jiangella muralis sp. nov., from an indoor environment. Int J Syst Evol Microbiol. 2011;61:128–31.
Suksaard P, Duangmal K, Srivibool R, Xie Q, Hong K, Pathom-Aree W. Jiangella mangrovi sp. nov., isolated from mangrove soil. Int J Syst Evol Microbiol. 2015;65:2569–73.
Stackebrandt E, Rainey FA, Ward-Rainey NL. Proposal for a new hierarchic classification system, Actinobacteria classis nov. Int J Syst Bacteriol. 1997;47:479–91.
Zhi XY, Li WJ, Stackebrandt E. An update of the structure and 16S rRNA gene sequence-based definition of higher ranks of the class Actinobacteria, with the proposal of two new suborders and four new families and emended descriptions of the existing higher taxa. Int J Syst Evol Microbiol. 2009;59:589–608.
Tang SK, Zhi XY, Wang Y, Shi R, Lou K, Xu LH, et al. Haloactinopolyspora alba gen. nov., sp. nov., a halophilic filamentous actinomycete isolated from a salt lake, with proposal of Jiangellaceae fam. nov. and Jiangellineae subord. nov. Int J Syst Evol Microbiol. 2011;61:194–200.
Goodfellow M. Class I. Actinobacteria. In: GM G, DJ B, NR K, JT S, editors. Bergey’s Manual of Systematic Bacteriology, vol. 5. 2nd ed. New York: Springer; 2012. p. 34.
Han L, Gao C, Jiang Y, Guan P, Liu J, Li L, et al. Jiangrines A-F and jiangolide from an actinobacterium, Jiangella gansuensis. J Nat Prod. 2014;77:2605–10.
Shirling EB, Gottlieb D. Methods for characterization of Streptomyces species1. Int J Syst Evol Microbiol. 1966;16:313–40.
Kim OS, Cho YJ, Lee K, Yoon SH, Kim M, Na H, et al. Introducing EzTaxon-e: a prokaryotic 16S rRNA gene sequence database with phylotypes that represent uncultured species. Int J Syst Evol Microbiol. 2012;62:716–21.
Li L, Ma J-B, Abdalla Mohamad O, Li S-H, Osman G, Li Y-Q, et al. Phytoactinopolyspora endophytica gen. nov., sp. nov., a halotolerant filamentous actinomycete isolated from the roots of Glycyrrhiza uralensis F. Int J Syst Evol Microbiol. 2015;65:2671–7.
Göker M, Klenk HP. Phylogeny-driven target selection for large-scale genome-sequencing (and other) projects. Stand Genomic Sci. 2013;8:360–74.
Kyrpides NC, Hugenholtz P, Eisen JA, Woyke T, Göker M, Parker CT, et al. Genomic Encyclopedia of Bacteria and Archaea: sequencing a myriad of type strains. PLoS Biol. 2014;8:e1001920.
Klenk HP, Göker M. En route to a genome-based classification of Archaea and Bacteria? Syst Appl Microbiol. 2010;33:175–82.
Wu D, Hugenholtz P, Mavromatis K, Pukall R, Dalin E, Ivanova NN, et al. A phylogeny-driven genomic encyclopaedia of Bacteria and Archaea. Nature. 2009;462:1056–60.
Liolios K, Mavromatis K, Tavernarakis N, Kyrpides NC. The Genomes On Line Database (GOLD) in 2007: status of genomic and metagenomic projects and their associated metadata. Nucleic Acids Res. 2008;36:D475–9.
Mavromatis K, Land ML, Brettin TS, Quest DJ, Copeland A, Clum A, Goodwin L, Woyke T, Lapidus A, Klenk HP, Cottingham RW, Kyrpides NC. The fast changing landscape of sequencing technologies and their impact on microbial genome assemblies and annotation. PLoS ONE. 2012;7:e48837.
Field D, Garrity G, Gray T, Morrison N, Selengut J, Sterk P, et al. The minimum information about a genome sequence (MIGS) specification. Nat Biotechnol. 2008;26:541–7.
Hyatt D, Chen GL, Locascio PF, Land ML, Larimer FW, Hauser LJ. Prodigal: prokaryotic gene recognition and translation initiation site identification. BMC Bioinformatics. 2010;11:119.
Mavromatis K, Ivanova NN, Chen IM, Szeto E, Markowitz VM, Kyrpides NC. The DOE-JGI Standard operating procedure for the annotations of microbial genomes. Stand Genomic Sci. 2009;1:63–7.
Chen IM, Markowitz VM, Chu K, Anderson I, Mavromatis K, Kyrpides NC, Ivanova NN. Improving microbial genome annotations in an integrated database context. PLoS ONE. 2013;8:e54859.
Pati A, Ivanova N, Mikhailova N, Ovchinikova G, Hooper SD, Lykidis A, Kyrpides NC. GenePRIMP: A Gene Prediction Improvement Pipeline for microbial genomes. Nat Methods. 2010;7:455–7.
Finn RD, Clements J, Eddy SR. HMMER web server: interactive sequence similarity searching. Nucleic Acids Res. 2011;39:W29–37.
Lowe TM, Eddy SR. tRNAscan-SE: a program for improved detection of transfer RNA genes in genomic sequence. Nucleic Acids Res. 1997;25:955–64.
Nawrocki EP, Kolbe DL, Eddy SR. Infernal 1.0: inference of RNA alignments. Bioinformatics. 2009;25:1335–7.
Markowitz VM, Mavromatis K, Ivanova NN, Chen IM, Chu K, Kyrpides NC. IMG ER: a system for microbial genome annotation expert review and curation. Bioinformatics. 2009;25:2271–8.
Bland C, Ramsey TL, Sabree F, Lowe M, Brown K, Kyrpides NC, et al. CRISPR recognition tool (CRT): a tool for automatic detection of clustered regularly interspaced palindromic repeats. BMC Bioinformatics. 2007;8:209.
Petersen J. Phylogeny and compatibility: plasmid classification in the genomics era. Arch Microbiol. 2011;193:313–21.
Hildebrand F, Meyer A, Eyre-Walker A. Evidence of selection upon genomic GC-content in bacteria. PLoS Genet. 2010;6:e1001107.
Wu H, Zhang Z, Hu S, Yu J. On the molecular mechanism of GC content variation among eubacterial genomes. Biol Direct. 2012;7:2.
Ranea JA, Buchan DW, Thornton JM, Orengo CA. Evolution of protein superfamilies and bacterial genome size. J Mol Biol. 2004;336:871–87.
Burke GR, Moran NA. Massive genomic decay in Serratia symbiotica, a recently evolved symbiont of aphids. Genome Biol Evol. 2011;3:195–208.
Hadjithomas M, Chen IM, Chu K, Ratner A, Palaniappan K, Szeto E, et al. IMG-ABC: A Knowledge Base To Fuel Discovery of Biosynthetic Gene Clusters and Novel Secondary Metabolites. MBio. 2015;6(4):e00932.
Medema MH, Blin K, Cimermancic P, de Jager V, Zakrzewski P, Fischbach MA, et al. antiSMASH: rapid identification, annotation and analysis of secondary metabolite biosynthesis gene clusters in bacterial and fungal genome sequences. Nucleic Acids Res. 2011;39:W339–46.
Blin K, Medema MH, Kazempour D, Fischbach MA, Breitling R, Takano E, et al. antiSMASH 2.0--a versatile platform for genome mining of secondary metabolite producers. Nucleic Acids Res. 2013;41:W204–12.
Tamura K, Peterson D, Peterson N, Stecher G, Nei M, Kumar S. MEGA5: molecular evolutionary genetics analysis using maximum likelihood, evolutionary distance, and maximum parsimony methods. Mol Biol Evol. 2011;28:2731–9.
Euzeby JP. List of Bacterial Names with Standing in Nomenclature: a folder available on the Internet. Int J Syst Bacteriol. 1997;47:590–2.
Garrity G. NamesforLife. BrowserTool takes expertise out of the database and puts it right in the browser. Microbiol Today. 2010;37:9.
Woese CRKO, Wheelis ML. Towards a natural system of organisms: Proposal for the domains Archaea, Bacteria, and Eucarya. Proc Natl Acad Sci U S A. 1990;87:4576–9.
Garrity G, Holt J. The Road Map to the Manual. In: Garrity G, Boone D, Castenholz R, editors. Bergey’s Manual of Systematic Bacteriology, vol. 1. Secondth ed. New York: Springer; 2001.
Tang SK, Zhi XY, Li WJ. Order VIII. Jiangellales ord. nov. In: Goodfellow M, Kämpfer P, Busse HJ, Trujillo ME, Suzuki K, Ludwig W, Whitman WB, editors. Bergey’s Manual of Systematic Bacteriology, vol. 5. 2nd ed. New York: Springer; 2012. p. 555.
Ashburner MBC, Blake JA, Botstein D, Butler H, Cherry JM, Davis AP, Dolinski K, Dwight SS, Eppig JT, et al. Gene ontology: tool for the unification of biology: the gene ontology consortium. Nat Genet. 2000;25:25–9.
Grant JR, Stothard P. The CGView Server: a comparative genomics tool for circular genomes. Nucleic Acids Res. 2008;36:W181–4.
We would like to gratefully acknowledge the help of Marlen Jando for growing J. gansuensis cultures, and Evelyne-Marie Brambilla for DNA extraction and quality control (both at DSMZ). This work was performed under the auspices of the US Department of Energy’s Office of Science, Biological and Environmental Research Program, and by the University of California, Lawrence Berkeley National Laboratory under Contract No. DE-AC02-05CH11231, Lawrence Livermore National Laboratory under Contract No. DE-AC52-07NA27344. AL was also supported by St. Petersburg State University grant (No 220.127.116.115). WJL and WNH would like to extend their appreciation to Deanship of Scientific Research at King Saud University for funding this work through the research group No. PRG-1436-27 and Natural Science Foundation of China (No. 31670009). WJL was also supported by ‘Hundred Talents Program’ of the Chinese Academy of Sciences and Guangdong Province Higher Vocational Colleges & Schools Pearl River Scholar Funded Scheme (2014).
JYJ, NCK, WJL, MG and HPK designed research and project outline. MG selected and prepared the samples. JYJ, LC, LL and XYG performed comparative genomics and 16S rRNA genes analyses. JYJ, LC, XTZ and AL analysed bioclusters and secondary metabolites. WNH, JYJ and WJL provided the background information on the current taxonomy in relationship to monophyletic groups. JYJ, LC, XYG, WJL and HPK drafted the manuscript. MH, TBKR, NV, MP, MH, NNI, JAE and TW performed genome sequencing, assembly and annotation. All authors read and approved the final manuscript.
The authors declare that they have no competing interests.

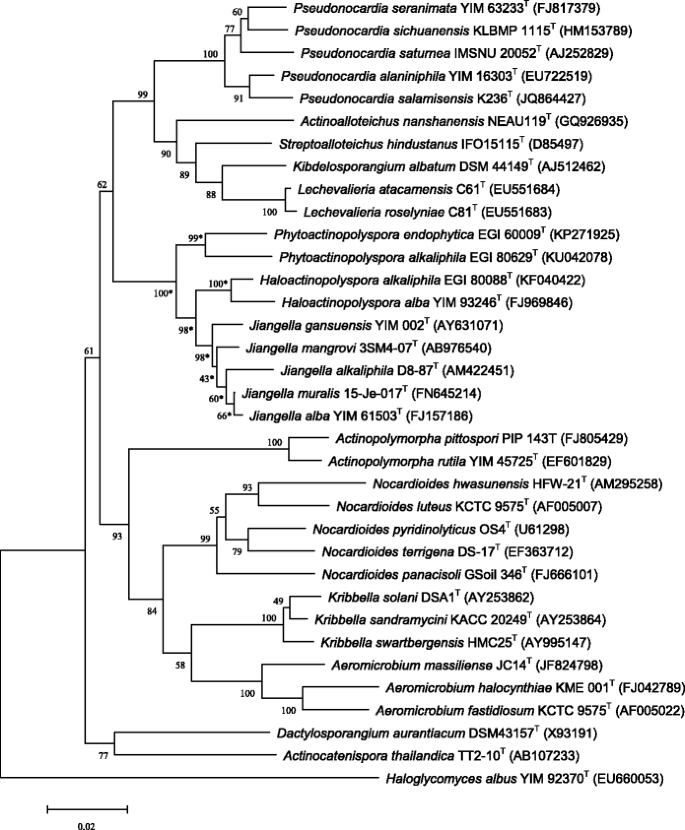

Phylogenetic tree showing the relationship of J. gansuensis YIM 002T with some other actinobacteria based on 16S rRNA sequences. The maximum-likelihood tree was built using MEGA 5 . Bootstrap values (percentages of 1000 replicates) are shown at branch points. Haloglycomyces albus was used as outgroup. (PDF 92 kb)
