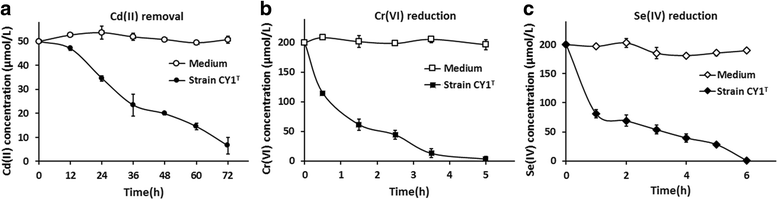

Fig. 3From: High-quality-draft genomic sequence of Paenibacillus ferrarius CY1T with the potential to bioremediate Cd, Cr and Se contaminationCd(II) removal (a), and Cr(VI) (b) and Se(IV) (c) reduction by P. ferrarius CY1T. Strain CY1T was incubated in LB [for Cd(II) removal] or NA medium [for Cr(VI) and Se(IV) reduction] until OD600 reach 0.6-0.7, and then amended with CdCl2 (50 μmol/L),K2CrO4 (200 μmol/L) and Na2SeO3 (200 μmol/L), respectively. At designed times, culture samples were taken for measuring the residual concentration of Cd(II), Cr(VI) and Se(IV). Data are shown as the mean of three replicates, with the error bars represents ± SDBack to article page
